EM9291 in Linux Preventing Shutdown

IoT Modules MC/EM Series
1

I have an EM9291 install in a machine who’s target OS is Fedora Core 40. I’ve also tried these steps with Fedora Workstation and Ubuntu 22.

The issue is that when we do a shutdown -h now the system will shutdown and then power back on. However, if we use Windows, this is not an issue, the system shutdowns normally.

I’ve tried using ModemManager and nmcli to disable the modem, but it doesn’t help. I installed Fedora Workstation 40 to try the install the drivers, but this also seems to not work.

I disabled and stopped ModemManager per the instructions and then compiled the drivers.

The drivers compile successfully and say they install, but there are no wwan0* devices in /dev. In addition, no ttyUSB devices are listed.

I confirmed the modem is working properly in Windows and the serial ports enumerate.

My question is three-fold:

  1. How do I get the system to shutdown?
  2. How do I get the drivers to properly install in Linux?
  3. Do you have a signed RPM for the drivers? That would make life a lot easier.
2

If you remove the module from the machine, does the shutdown work?

Btw, did you install this usb driver downloaded from here?

https://source.sierrawireless.com/resources/airprime/software/mbpl/mbpl-software-latest/

3

Yes, if you remove the modem from the machine, the shutdown in Linux is okay.

I installed the driver you linked, but it doesn’t seem to have an effect. I’ve disable secure boot and the TPM on the computer for testing.

I also tried to upgrade the firmware to SWIX65C_02.17.08.00, to it seemed like it worked in Windows, but Linux still shows 02.15.01.

4

How about usb thumb drive?
Will it power on the linux?

Did you also check the BIOS setting?

How do you check the firmware version?
It is strange that the firmware version is different between windows and linux.

5

Hi,

We solved the power off issue, it was an interaction between WAKE# and the BIOS.

However, I still don’t think the driver is working properly in Linux. I tried loading the modem firmware with the following commands with the built-in qcserial driver but got the following:

$ sudo ./fw-download-toolhostx86_64 -f ../image -p /dev/wwan0mbim0 -c MBIM
Application version: 1.0.2405.0
INFO: QDL Port:
INFO: Device Path: /dev/wwan0mbim0
INFO: Device Port: 0-0
INFO: FW Path: ../image
Target image Info:
Carrier    :VERIZON
FW Version :02.17.08.00
Model ID   :SWIX65C
Package ID :000
PRI Version:030.090
SKU        :9999999
Switching device into download mode for image switch ...
Modem Needs FW
Modem Needs PRI
Waiting for modem to disconnect from the host ...
Modem disconnected from host.
Waiting for modem to come up in BOOT and HOLD mode ...
Modem not coming up in BOOT and HOLD mode in 60 seconds. Please check parameters.  Application terminates.

Note: in this configuration only have the following devices: wwan0mbim0 wwan0qcdm0 wwan0qmi0

I then tried to build and load the R40 drivers. They build and insert properly, but I don’t see anything enumerate in /dev. All the wwan device are gone and I don’t see a ttyUSB device or anything else.

6

you can see the command parameter for fwdownload tool here:

If there is no /dev/ttyUSB enumerated, you cannot download the firmware

I used this MBPL_DRIVERS_R31_ENG2-usb-src.tar.gz in ubuntu 18 with EM9291.
MBPL_DRIVERS_R31_ENG2-usb-src.tar.gz (24.9 KB)

Kernel log shows wwan0 network interface, /dev/ttyUSB0 (AT port) and /dev/ttyUSB1 (DM port) for USB serial port

7

Hi,

There are no ttyUSB devices enumerated even though it looks like the qcserial driver is loaded correctly. I only see wwan0mbim0 wwan0qcdm0 wwan0qmi0.

lspci shows
05:00.0 Unassigned class [ff00]: Qualcomm Technologies, Inc Device 0308

lsusb doesn’t show anything.

I built and installed the R31 version you linked.

core@p5-0000-core:~$ modinfo qcserial
filename:       /lib/modules/6.11.3-200.fc40.x86_64/kernel/drivers/usb/serial/qcserial.ko
version:        1.11.2302.2
license:        GPL v2
description:    Qualcomm USB Serial driver
author:         Qualcomm Inc
srcversion:     069540C0FE9457C8D7D7861
alias:          usb:v03F0p581Dd*dc*dsc*dp*ic*isc*ip*in*
alias:          usb:v413Cp81D2d*dc*dsc*dp*ic*isc*ip*in*
...
alias:          usb:v1199p9078d*dc*dsc*dp*ic*isc*ip*in*
alias:          usb:v1199p9070d*dc*dsc*dp*ic*isc*ip*in*
alias:          usb:v1199p68C0d*dc*dsc*dp*ic*isc*ip*in*
depends:        usb_wwan
retpoline:      Y
name:           qcserial
vermagic:       6.11.3-200.fc40.x86_64 SMP preempt mod_unload
parm:           debug:enable/disable driver logging (bool)

core@p5-0000-core:~$ modinfo qmi_wwan
filename:       /lib/modules/6.11.3-200.fc40.x86_64/kernel/drivers/net/usb/qmi_wwan.ko
version:        1.7.2302.2
license:        GPL
description:    Qualcomm MSM Interface (QMI) WWAN driver
author:         Bjørn Mork <bjorn@mork.no>
srcversion:     93537AC544D2B4799778C60
alias:          usb:v1410pA021d*dc*dsc*dp*ic*isc*ip*in00*
alias:          usb:v12D1p14F1d*dc*dsc*dp*ic*isc*ip*in00*
alias:          usb:v1199p901Bd*dc*dsc*dp*ic*isc*ip*in00*
...
alias:          usb:v12D1p*d*dc*dsc*dp*icFFisc01ip39in*
alias:          usb:v12D1p*d*dc*dsc*dp*icFFisc01ip09in*
depends:        usbnet,cdc-wdm
retpoline:      Y
name:           qmi_wwan
vermagic:       6.11.3-200.fc40.x86_64 SMP preempt mod_unload
parm:           debug:enable/disable driver logging (bool)

$ modinfo usb_wwan
filename:       /lib/modules/6.11.3-200.fc40.x86_64/kernel/drivers/usb/serial/usb_wwan.ko
version:        1.2.2302.2
license:        GPL v2
description:    USB Driver for GSM modems
author:         Matthias Urlichs <smurf@smurf.noris.de>
srcversion:     E6191639FA7FA9BE194C778
depends:
retpoline:      Y
name:           usb_wwan
vermagic:       6.11.3-200.fc40.x86_64 SMP preempt mod_unload
parm:           debug:enable/disable driver logging (bool)
8

What is the VID PID on dmesg?

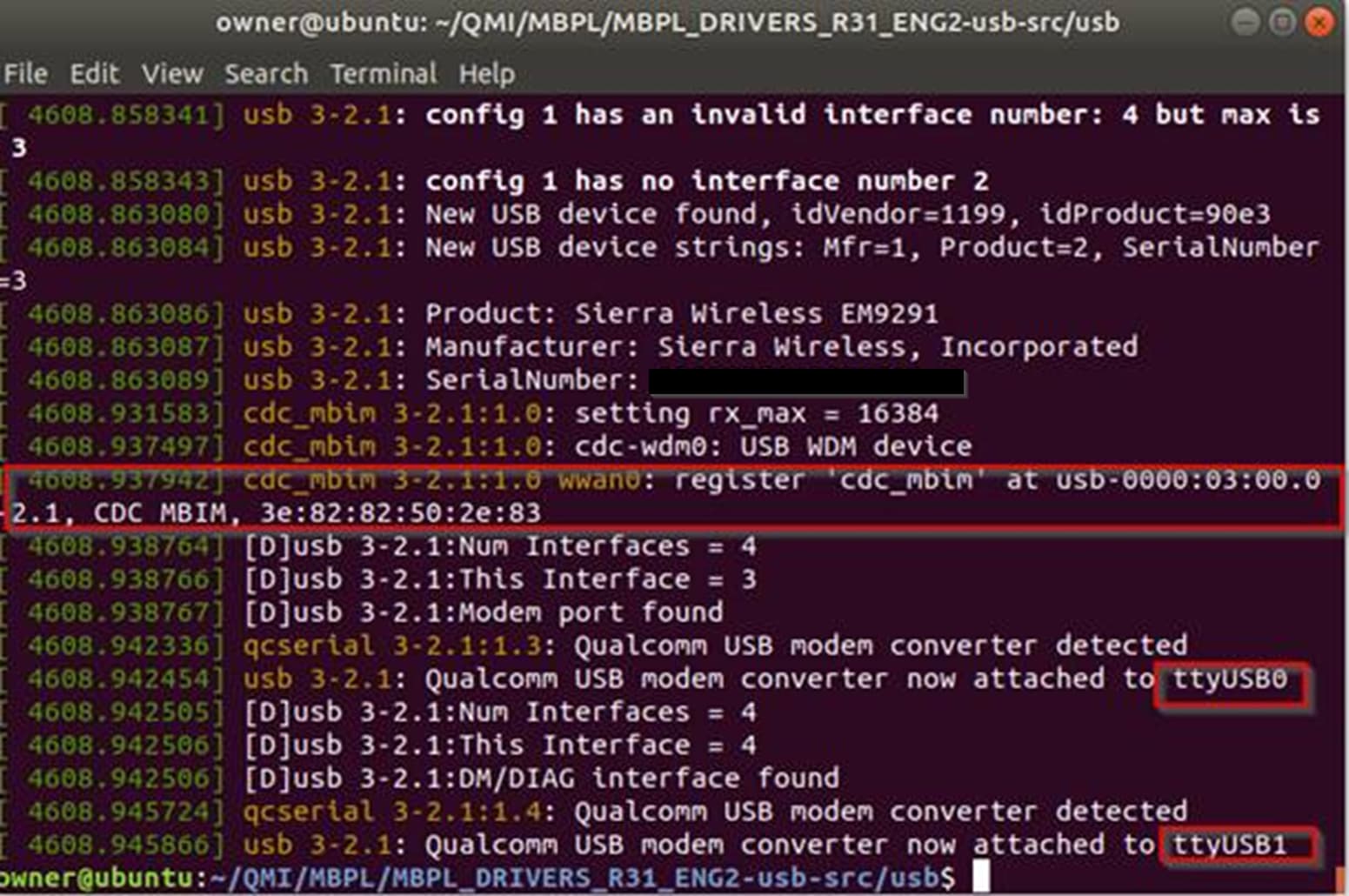

On my side, I can see the following:

image1551×1030 165 KB

9

I don’t get any cdc or usb enumeration. Unfortunately, I can’t post the full output of dmesg, but I tried to capture the relevant sections.

core@p5-0000-core:~$ cat dmesg.log  | grep usb
[    0.319555] usbcore: registered new interface driver usbfs
[    0.319555] usbcore: registered new interface driver hub
[    0.319555] usbcore: registered new device driver usb
[    0.590548] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.11
[    0.590553] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.590555] usb usb1: Product: xHCI Host Controller
[    0.590556] usb usb1: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.590557] usb usb1: SerialNumber: 0000:00:0d.0
[    0.590924] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.11
[    0.590928] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.590930] usb usb2: Product: xHCI Host Controller
[    0.590931] usb usb2: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.590933] usb usb2: SerialNumber: 0000:00:0d.0
[    0.593024] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.11
[    0.593028] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.593030] usb usb3: Product: xHCI Host Controller
[    0.593031] usb usb3: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.593033] usb usb3: SerialNumber: 0000:00:14.0
[    0.594330] usb usb4: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.11
[    0.594332] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.594334] usb usb4: Product: xHCI Host Controller
[    0.594335] usb usb4: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.594336] usb usb4: SerialNumber: 0000:00:14.0
[    0.595012] usbcore: registered new interface driver usbserial_generic
[    0.595016] usbserial: USB Serial support registered for generic
[    0.604907] usbcore: registered new interface driver usbhid
[    0.604912] usbhid: USB HID core driver
[    0.831986] usb 3-3: new full-speed USB device number 2 using xhci_hcd
[    0.964062] usb 3-3: New USB device found, idVendor=0461, idProduct=4e25, bcdDevice= 1.32
[    0.964315] usb 3-3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[    0.964514] usb 3-3: Product: HP Wireless Keyboard Kit
[    0.964710] usb 3-3: Manufacturer: Hewlett Packard
[    0.968971] input: Hewlett Packard HP Wireless Keyboard Kit as /devices/pci0000:00/0000:00:14.0/usb3/3-3/3-3:1.0/0003:0461:4E25.0001/input/input3
[    1.052959] hid-generic 0003:0461:4E25.0001: input,hidraw0: USB HID v1.11 Keyboard [Hewlett Packard HP Wireless Keyboard Kit] on usb-0000:00:14.0-3/input0
[    1.489555] input: Hewlett Packard HP Wireless Keyboard Kit Consumer Control as /devices/pci0000:00/0000:00:14.0/usb3/3-3/3-3:1.1/0003:0461:4E25.0002/input/input4
[    1.541843] input: Hewlett Packard HP Wireless Keyboard Kit System Control as /devices/pci0000:00/0000:00:14.0/usb3/3-3/3-3:1.1/0003:0461:4E25.0002/input/input5
[    1.542292] input: Hewlett Packard HP Wireless Keyboard Kit as /devices/pci0000:00/0000:00:14.0/usb3/3-3/3-3:1.1/0003:0461:4E25.0002/input/input6
[    1.542363] hid-generic 0003:0461:4E25.0002: input,hiddev96,hidraw1: USB HID v1.11 Device [Hewlett Packard HP Wireless Keyboard Kit] on usb-0000:00:14.0-3/input1
[    1.730349] input: Hewlett Packard HP Wireless Keyboard Kit as /devices/pci0000:00/0000:00:14.0/usb3/3-3/3-3:1.2/0003:0461:4E25.0003/input/input8
[    1.731842] hid-generic 0003:0461:4E25.0003: input,hidraw2: USB HID v1.11 Mouse [Hewlett Packard HP Wireless Keyboard Kit] on usb-0000:00:14.0-3/input2
[    1.847803] usb 3-7: new full-speed USB device number 3 using xhci_hcd
[    1.975878] usb 3-7: New USB device found, idVendor=0cf3, idProduct=e600, bcdDevice= 0.01
[    1.976605] usb 3-7: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[    3.359366] usbcore: registered new interface driver cdc_wdm
[    3.360862] usbcore: registered new interface driver cdc_ether
[    3.363413] usbcore: registered new interface driver cdc_ncm
[    3.364733] usbcore: registered new interface driver cdc_mbim
[    3.365697] usb_wwan: loading out-of-tree module taints kernel.
[    3.366383] usb_wwan: module verification failed: signature and/or required key missing - tainting kernel
[    3.369018] usbcore: registered new interface driver qmi_wwan
[    3.370514] usbcore: registered new interface driver qcserial
[    3.370523] usbserial: USB Serial support registered for Qualcomm USB modem
[    3.370526] usbserial: USB Serial support registered for Qualcomm USB modem
[    3.724409] usbcore: registered new interface driver btusb
core@p5-0000-core:~$ cat dmesg.log  | grep Qu
[    0.144378] DMAR-IR: Queued invalidation will be enabled to support x2apic and Intr-remapping.
[    1.170369] systemd[1]: Queued start job for default target initrd.target.
[    3.327946] systemd[1]: Mounting dev-mqueue.mount - POSIX Message Queue File System...
[    3.355857] systemd[1]: Mounted dev-mqueue.mount - POSIX Message Queue File System.
[    3.370523] usbserial: USB Serial support registered for Qualcomm USB modem
[    3.370526] usbserial: USB Serial support registered for Qualcomm USB modem
[    3.623114] EXT4-fs (nvme0n1p3): mounted filesystem 080c3d47-1a8a-4d42-95c5-979f8d8ede38 ro with ordered data mode. Quota mode: none.
core@p5-0000-core:~$ cat dmesg.log  | grep mbim
[    3.364733] usbcore: registered new interface driver cdc_mbim
[    3.698059] wwan wwan0: port wwan0mbim0 attached
core@p5-0000-core:~$ cat dmesg.log  | grep mhi
[    3.572672] mhi-pci-generic 0000:05:00.0: MHI PCI device found: qcom-sdx65m
[    3.572678] mhi-pci-generic 0000:05:00.0: BAR 0 [mem 0x51701000-0x51701fff 64bit]: assigned
[    3.572768] mhi-pci-generic 0000:05:00.0: enabling device (0000 -> 0002)
[    3.575989] mhi mhi0: Requested to power ON
[    3.575999] mhi mhi0: Power on setup success
[    4.191713] mhi mhi1: Requested to power ON
[    4.191725] mhi mhi1: Power on setup success
[    4.647805] mhi mhi1: Wait for device to enter SBL or Mission mode
10

I wonder if you really connect the EM9291 module to the board, I don’t even see Vendor ID 1199

Please check the status of pin 20 and pin 22 to see whether you are setting USB as communication port:

11

Thank you for pointing me in that direction. Indeed, pins 20 and 22 were disconnected. However, this seemed to cause another issue.

We have a custom board carrier board with a NVMe drive (using 4x PCI), and several other network devices using various other PCI lanes.

When we pull PCIE_DIS to 1.8V and VBUS_SENSE to 3.3V, the module causes the NVMe drive to not report to the BIOS. The system become unusable because it cannot boot.
If I remove the module, the NVMe drive is accessible and works properly.

If we leave PCIE_DIS open and leave VBUS_SENSE pulled high, the system operates normally except the 9291 does not report on USB, but it does show up as a PCIe device.

I have two questions:

  1. Does the 9291 do something to the PCIe lanes when PCIE_DIS is pulled high? Is there something we can do to change that behavior?
  2. Is it possible to use the device in PCIe mode and still be able to load firmware and execute AT commands? We would also like to use the GPS as part of the standard gpsd service is Linux. Is this possible in PCIe mode?

Thanks for you help.

12

You need to see the specification of em9291
The pin is controlling whether it is for usb or pcie communication

Btw, did you install the pcie driver?
https://source.sierrawireless.com/resources/airprime/software/mbpl/mbpl-software-latest/

13

I reviewed the specification and we are pulling the pins high according to that. When we do that, the nvme stops working.

I installed those drivers, but they don’t seem to have any effect on the system. I’m not able to load the firmware to the device.

14

So you have installed the pcie driver?

Btw, why does the nvme driver stop working?
Did you debug this?
How about connecting the em9291 module with usb after the system boots?

15

I attempted to install PCIe drivers, but I hit the following problems.

  1. MBPL_DRIVERS_R40_ENG3-bin.tar.gz seems to only have Ubuntu_x64 and kernel 5.3. We run Fedora Core with kernel 6.11
  2. MBPL_DRIVERS_R40_ENG3-usb-pcie-src.tar.gz has the directories usb and linaro. The usb driver builds fine, but the linaro won’t build and has the following error:
~/sw/r40/linaro$ make
make -C /lib/modules/6.11.3-200.fc40.x86_64/build M=/var/home/core/sw/r40/linaro ccflags-y="-DCONFIG_MHI_BUS_DEBUG"
make[1]: Entering directory '/usr/src/kernels/6.11.3-200.fc40.x86_64'
  CC [M]  /var/home/core/sw/r40/linaro/host/init.o
/var/home/core/sw/r40/linaro/host/init.c:1447:18: error: initialization of ‘int (*)(struct device *, const struct device_driver *)’ from incompatible pointer type ‘int (*)(struct device *, struct device_driver *)’ [-Wincompatible-pointer-types]
 1447 |         .match = mhi_match,
      |                  ^~~~~~~~~
/var/home/core/sw/r40/linaro/host/init.c:1447:18: note: (near initialization for ‘mhi_bus_type.match’)
make[4]: *** [scripts/Makefile.build:244: /var/home/core/sw/r40/linaro/host/init.o] Error 1
make[3]: *** [scripts/Makefile.build:485: /var/home/core/sw/r40/linaro/host] Error 2
make[2]: *** [/usr/src/kernels/6.11.3-200.fc40.x86_64/Makefile:1966: /var/home/core/sw/r40/linaro] Error 2
make[1]: *** [Makefile:236: __sub-make] Error 2
make[1]: Leaving directory '/usr/src/kernels/6.11.3-200.fc40.x86_64'
make: *** [Makefile:20: all] Error 2

Just FYI, when the device is in USB mode, causes the whole PCI bus to go down. I’ve tried a few EM9291s with the same issue.

If I bring up the system with the EM9291 installed and then install it after boot, it causes all the PCIe devices to disconnect and the system becomes non-functional because the NVMe drive is now offline (inaccessible.)

16

I don’t see problem to compile in Ubuntu 20.

Can you try Ubuntu 20?


owner@ubuntu:~/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro$ make
make -C /lib/modules/5.15.0-91-generic/build M=/home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro ccflags-y="-DCONFIG_MHI_BUS_DEBUG"
make[1]: Entering directory '/usr/src/linux-headers-5.15.0-91-generic'
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/init.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/main.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/pm.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/boot.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/debugfs.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/pci_generic.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi_pci_semtech.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/uci.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_ctrl.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_mbim.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_dtr.o
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/qrtr/mhi.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/qrtr/qrtr-mhi.o
  MODPOST /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/Module.symvers
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi.mod.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi.ko
  BTF [M] /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi.ko
Skipping BTF generation for /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi.ko due to unavailability of vmlinux
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi_pci_semtech.mod.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi_pci_semtech.ko
  BTF [M] /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi_pci_semtech.ko
Skipping BTF generation for /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/mhi_pci_semtech.ko due to unavailability of vmlinux
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/uci.mod.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/uci.ko
  BTF [M] /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/uci.ko
Skipping BTF generation for /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/host/uci.ko due to unavailability of vmlinux
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/qrtr/qrtr-mhi.mod.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/qrtr/qrtr-mhi.ko
  BTF [M] /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/qrtr/qrtr-mhi.ko
Skipping BTF generation for /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/qrtr/qrtr-mhi.ko due to unavailability of vmlinux
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_dtr.mod.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_dtr.ko
  BTF [M] /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_dtr.ko
Skipping BTF generation for /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_dtr.ko due to unavailability of vmlinux
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_ctrl.mod.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_ctrl.ko
  BTF [M] /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_ctrl.ko
Skipping BTF generation for /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_ctrl.ko due to unavailability of vmlinux
  CC [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_mbim.mod.o
  LD [M]  /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_mbim.ko
  BTF [M] /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_mbim.ko
Skipping BTF generation for /home/owner/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro/wwan/mhi_wwan_mbim.ko due to unavailability of vmlinux
make[1]: Leaving directory '/usr/src/linux-headers-5.15.0-91-generic'
owner@ubuntu:~/QMI/MBPL/MBPL_DRIVERS_R40_ENG3-usb-pcie-src/linaro$ lsb_release -a
No LSB modules are available.
Distributor ID:	Ubuntu
Description:	Ubuntu 20.04.6 LTS
Release:	20.04
Codename:	focal
17

I fixed it by changing the signature to:

int mhi_match(struct device *dev, const struct device_driver *drv) {

I now see the wwan0at0 interface. Is it possible to access the GPS in PCIe mode? We would like to access it using gpsd. We are looking to get a GPS time source into chrony and this seems to be the easiest method. If there is another method, we would be happy to use that too.

Are the MHI and USB interfaces considered equivalent?

Just FYI, Ubuntu 20 LTS reaches end of general support in May 2025.

18

does this help?

19

I get to the part where it says to set GPS to autostart and but /dev/cdc-wdm0 doesn’t enumerate.

Here is the minicom log

AT
OK
AT!USBCOMP?
Config Index: 1
Config Type:  4 (MBIM V2)
Interface bitmask: 00001009 (diag,modem,mbim)

OK
AT!CUSTOM?
!CUSTOM:
             GPSENABLE          0x01
             GPSSEL             0x01
             IMCONFIG           0x02
             IPV6ENABLE         0x01
             UIM2ENABLE         0x01
             SIMLPM             0x01
             USBSERIALENABLE    0x01
             SCRUBEN            0x01
             CSDDISABLE         0x01
             ICMPINTSRVDIS      0x01
             SIMLPA             0x01


OK
AT!GPSAUTOSTART=1
OK

dmesg shows this:

~$ sudo dmesg | grep usb
[    0.291543] usbcore: registered new interface driver usbfs
[    0.291543] usbcore: registered new interface driver hub
[    0.291543] usbcore: registered new device driver usb
[    0.552359] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.11
[    0.552361] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.552363] usb usb1: Product: xHCI Host Controller
[    0.552364] usb usb1: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.552366] usb usb1: SerialNumber: 0000:00:0d.0
[    0.552475] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.11
[    0.552477] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.552479] usb usb2: Product: xHCI Host Controller
[    0.552480] usb usb2: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.552481] usb usb2: SerialNumber: 0000:00:0d.0
[    0.554581] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.11
[    0.554583] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.554585] usb usb3: Product: xHCI Host Controller
[    0.554586] usb usb3: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.554587] usb usb3: SerialNumber: 0000:00:14.0
[    0.555896] usb usb4: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 6.11
[    0.555898] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    0.555899] usb usb4: Product: xHCI Host Controller
[    0.555901] usb usb4: Manufacturer: Linux 6.11.3-200.fc40.x86_64 xhci-hcd
[    0.555902] usb usb4: SerialNumber: 0000:00:14.0
[    0.556471] usbcore: registered new interface driver usbserial_generic
[    0.556475] usbserial: USB Serial support registered for generic
[    0.565882] usbcore: registered new interface driver usbhid
[    0.565886] usbhid: USB HID core driver
[    0.797730] usb 3-7: new full-speed USB device number 2 using xhci_hcd
[    0.928293] usb 3-7: New USB device found, idVendor=0cf3, idProduct=e600, bcdDevice= 0.01
[    0.928682] usb 3-7: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[    3.509156] usbcore: registered new interface driver cdc_wdm
[    3.512541] usbcore: registered new interface driver cdc_ether
[    3.516899] usbcore: registered new interface driver cdc_ncm
[    3.518707] usbcore: registered new interface driver cdc_mbim
[    3.521726] usbcore: registered new interface driver qmi_wwan
[    3.523307] usbcore: registered new interface driver qcserial
[    3.523741] usbserial: USB Serial support registered for Qualcomm USB modem
[    3.524152] usbserial: USB Serial support registered for Qualcomm USB modem
[    3.921939] Modules linked in: sunrpc rapl intel_cstate btmtk bluetooth intel_uncore processor_thermal_mbox mei spi_intel_pci soundcore i2c_i801 cec wmi_bmof int340x_thermal_zone spi_intel i2c_smbus intel_soc_dts_iosf intel_pmc_core intel_vsec int3400_thermal pmt_telemetry fjes(-) pmt_class acpi_thermal_rel acpi_tad acpi_pad mhi_pci_semtech(OE) qcserial(OE) qmi_wwan(OE) usb_wwan(OE) cdc_mbim cdc_ncm cdc_ether cdc_wdm usbnet mii ath11k_pci(OE) mhi(OE) ath11k(OE) mac80211 libarc4 cfg80211 rfkill qmi_helpers nfnetlink overlay xfs nvme_tcp crct10dif_pclmul crc32_pclmul crc32c_intel nvme_fabrics polyval_clmulni nvme polyval_generic nvme_keyring nvme_core ghash_clmulni_intel sha512_ssse3 sha256_ssse3 igc sha1_ssse3 wdat_wdt nvme_auth video wmi pinctrl_tigerlake be2iscsi bnx2i cnic uio cxgb4i cxgb4 tls cxgb3i cxgb3 mdio libcxgbi libcxgb qla4xxx iscsi_boot_sysfs iscsi_tcp libiscsi_tcp libiscsi scsi_transport_iscsi scsi_dh_rdac scsi_dh_emc scsi_dh_alua ip6_tables ip_tables fuse dm_multipath
[    4.006038] usbcore: registered new interface driver btusb

tail of dmesg

[    7.558489] fbcon: i915drmfb (fb0) is primary device
[    9.797194] Console: switching to colour frame buffer device 240x67
[    9.821421] i915 0000:00:02.0: [drm] fb0: i915drmfb frame buffer device
[   24.124080] systemd-journald[1013]: /var/log/journal/ed135f74695646ad9803f565ac5d4449/user-1000.journal: Journal file uses a different sequence number ID, rotating.

ls of /dev

$ ls /dev
acpi_thermal_rel  cpu_dma_latency  fd         kmsg             mhi0_QDSS     nvme0      pps0  ptp2    shm       tty10  tty19  tty27  tty35  tty43  tty51  tty6   ttyS1   ttyS18  ttyS26  ttyS6    usbmon1      vcs4   vcsa6  vga_arbiter  wwan0qmi0
autofs            disk             full       kvm              mqueue        nvme0n1    pps1  ptp3    snapshot  tty11  tty2   tty28  tty36  tty44  tty52  tty60  ttyS10  ttyS19  ttyS27  ttyS7    usbmon2      vcs5   vcsu   vhci         zero
block             dma_heap         fuse       log              mtd           nvme0n1p1  pps2  ptp4    snd       tty12  tty20  tty29  tty37  tty45  tty53  tty61  ttyS11  ttyS2   ttyS28  ttyS8    usbmon3      vcs6   vcsu1  vhost-net
btrfs-control     dri              gpiochip0  loop-control     mtd0          nvme0n1p2  pps3  ptp5    stderr    tty13  tty21  tty3   tty38  tty46  tty54  tty62  ttyS12  ttyS20  ttyS29  ttyS9    usbmon4      vcsa   vcsu2  vhost-vsock
bus               drm_dp_aux0      hpet       mapper           mtd0ro        nvme0n1p3  pps4  pts     stdin     tty14  tty22  tty30  tty39  tty47  tty55  tty63  ttyS13  ttyS21  ttyS3   udmabuf  userfaultfd  vcsa1  vcsu3  watchdog
char              drm_dp_aux1      hugepages  mcelog           net           nvme0n1p4  pps5  random  stdout    tty15  tty23  tty31  tty4   tty48  tty56  tty7   ttyS14  ttyS22  ttyS30  uhid     vcs          vcsa2  vcsu4  watchdog0
console           drm_dp_aux2      hwrng      mei0             ng0n1         nvram      ptmx  rfkill  tty       tty16  tty24  tty32  tty40  tty49  tty57  tty8   ttyS15  ttyS23  ttyS31  uinput   vcs1         vcsa3  vcsu5  wwan0at0
core              drm_dp_aux3      initctl    mem              null          port       ptp0  rtc     tty0      tty17  tty25  tty33  tty41  tty5   tty58  tty9   ttyS16  ttyS24  ttyS4   urandom  vcs2         vcsa4  vcsu6  wwan0mbim0
cpu               drm_dp_aux4      input      mhi0_IP_HW_ADPL  nvme-fabrics  ppp        ptp1  rtc0    tty1      tty18  tty26  tty34  tty42  tty50  tty59  ttyS0  ttyS17  ttyS25  ttyS5   usbmon0  vcs3         vcsa5  vfio   wwan0qcdm0

VBUS_SENSE is pulled to 3.3V, PCIE_DIS is floating.

20

Do you see the mbim interface enumerated just like the following?

For example, I can see the wwan0qmi0 and wwan0mbim0 interface in your log

BTW, it seems your environment is still using PCIE interface for your module
